Detonation Control Visualization

The operating data of DetCon Detonation Control system will be completely visualized via HMI module (Human Machine Interface). The overview screen shows the relevant information as engine knocking, knock intensity and status for activated load reduction or emergency shutdown of engine. The control keys guarantee simple navigation through different display pages and menus. All in all the PowerView3 HMI module is also able to provide error diagnostics on-site without requiring a laptop! The PowerView3 is also available for data visualization of:
• MIC Ignition Control (MIC3, MIC4 and MIC5 series)
• TempScan20 Temperature Scanner

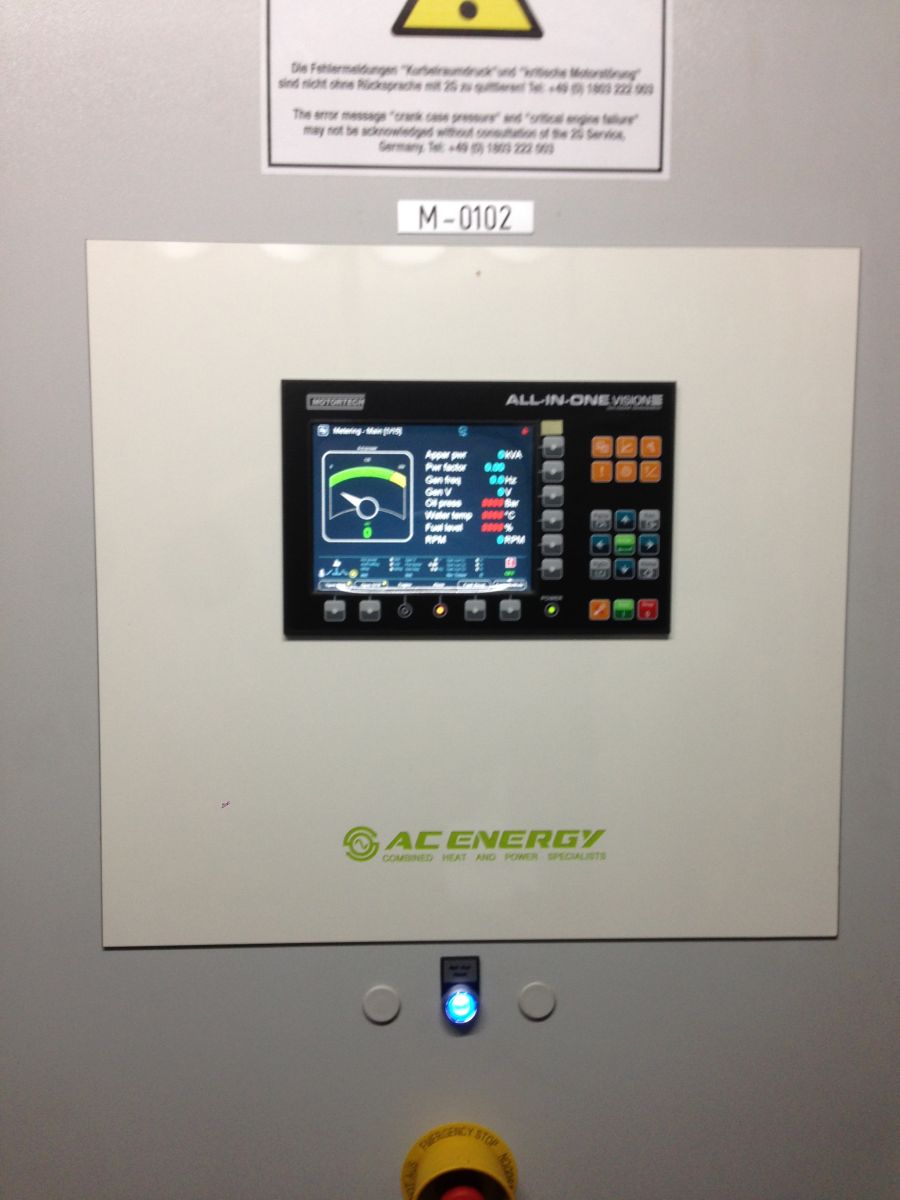

For monitoring, controlling, regulating and system protection. ALL-IN-ONE is an expandable controller for both single and multiple gen-sets operating in standby or parallel modes, especially in cogeneration (CHP) and other complex applications. Modular design (consisting of AIO controller and display unit) allows easy installation with the ability to add many different extension modules designed to suit individual customer requirements. Built-in synchronizing, digital isochronous load sharing and air-fuel-ratio functions (requires additional dongle) allow a total
integrated solution for gen-sets in standby, island, parallel or mains parallel. Native co-operation of up to 32 gen-sets is a standard feature. AIO supports many standard ECU (electronic control unit) types and is specially designed to easily integrate new ones. A powerful graphic display with user-friendly controls allows any user whatever their ability to find the information they need. The display on the basic version is capable of displaying graphical languages (e.g. Chinese).



• Support of engines with ECU (Electronic control unit)
• Excellent configurability to match customer´s needs exactly
• Complete integrated gen-set solution incorporating built-in PLC and signal sharing via CAN bus – minimum external components needed
• Many communication options – easy remote supervising and servicing
• Perfect price / performance ratio
• Gen-set performance log for easy problem tracing
• Air-Fuel-Ratio function for lean burn gas engine (requires additional hardware dongle)
